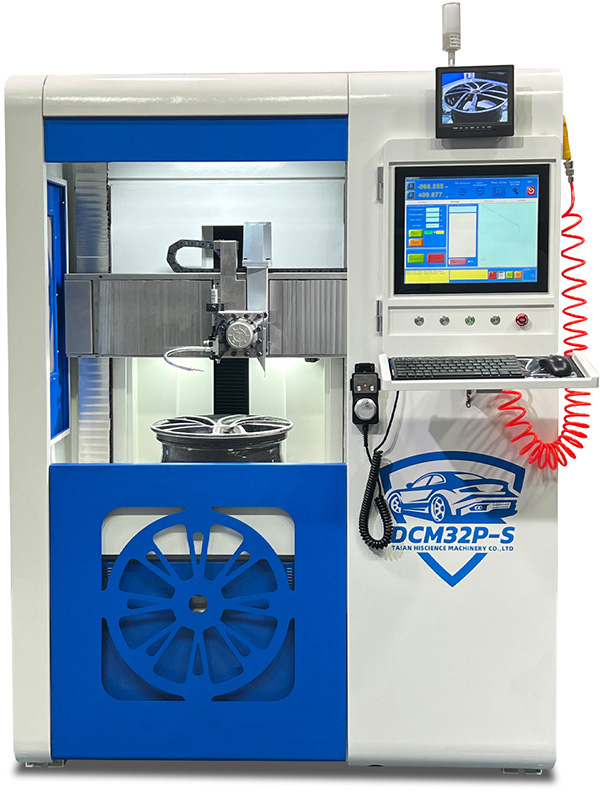

Alloy Wheel Repair Diamond Cutting Machine DCM32P-S

Alloy Wheel Repair Diamond Cutting Machine DCM32P-S

Introduction

DCM32P-S wheel repair lathe is a new generation upgraded product with independent intellectual property rights developed by our company. This product integrates mature product, experience, and comprehensively upgrades the cast iron bed structure and X/Z axis structure in design. At the same time, in order to achieve better wheel repair effect and better user experience, DCM32P-S adopts higher end product components and adds more functional modules.DCM32P-S reflects its professional quality and craftsmanship from product design, manufacturing process and selection of key components.

Product Video

Specifications

Maximum clamping wheel size: 30 inch

Maximum diameter with tire on: 800mm

Maximum repairable wheel thickness: 480mm

X-axis travel: 550 mm

X-axis drive motor torque: 6NM

Z-axis travel: 750mm

Z-axis drive motor torque: 10NM (With brake function)

Total machine power: 9KW

Spindle speed: 50-1800rpm

Chuck Diameter / Number of Jaws: 250mm / 4 jaws

Tool changer: 4 Station automatic tool changer

X/Z feed accuracy: 0.001mm

Wheel detection method: Ruby probe detection system (optional laser detection system)

Detection accuracy Ruby probe detection: 0.001mm

Device Voltage / Frequency: 380V 3ph / 50HZ

Customization for different voltages: Support

Net weight: 1250KG

Gross Weight: 1350KG

Machine size: 1430 × 1050 × 1905 mm

Features

Vertical structure, small footprint

Only 4 simple steps to repair the wheel, saving time and effort

Cast iron bed is high stability. Wheel repair size can up to 30inch

PC control system, powerful and easy to operate

Add more auxiliary functions to make the operation more comfortable

Wheel repairing can achieve mirror surface and rainbow effect

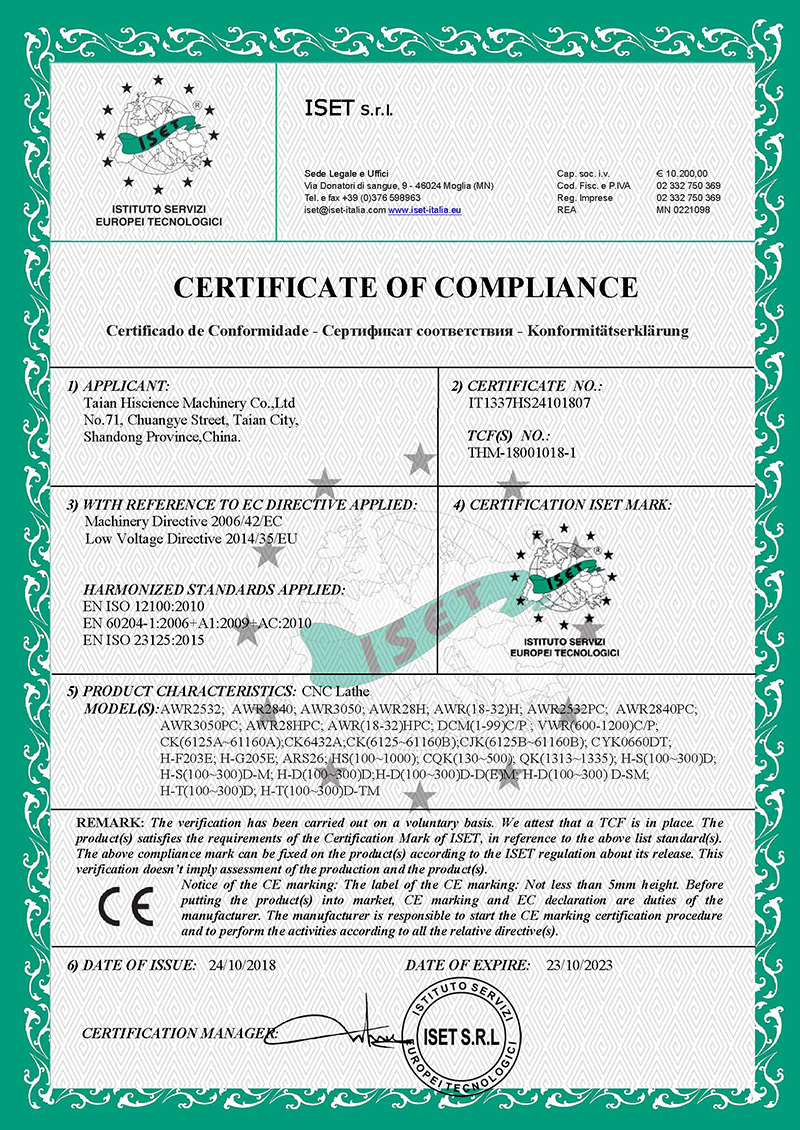

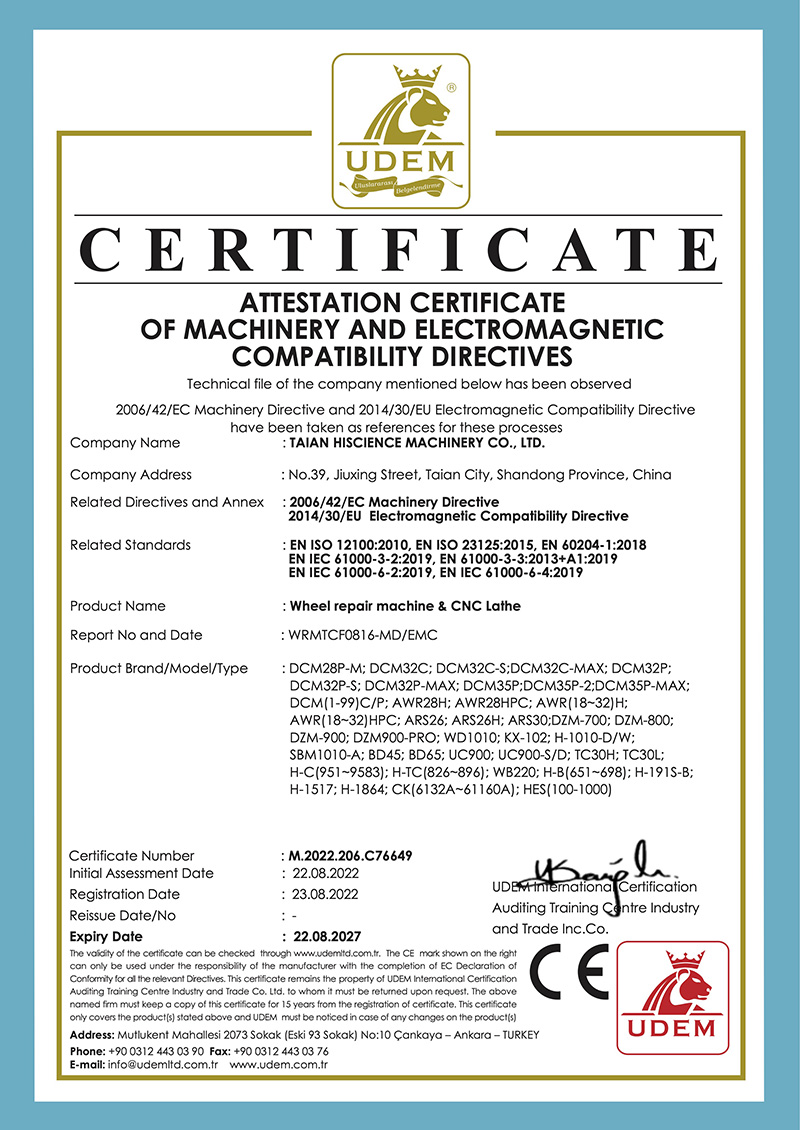

Certificate

CE

CE

CE

CE
