Introduction

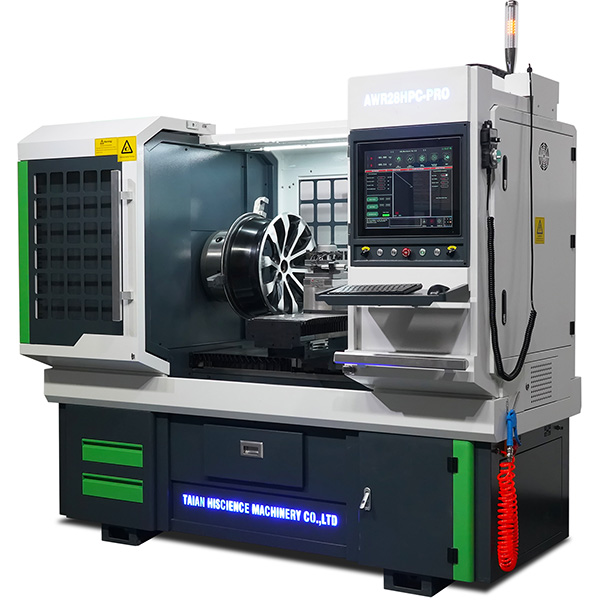

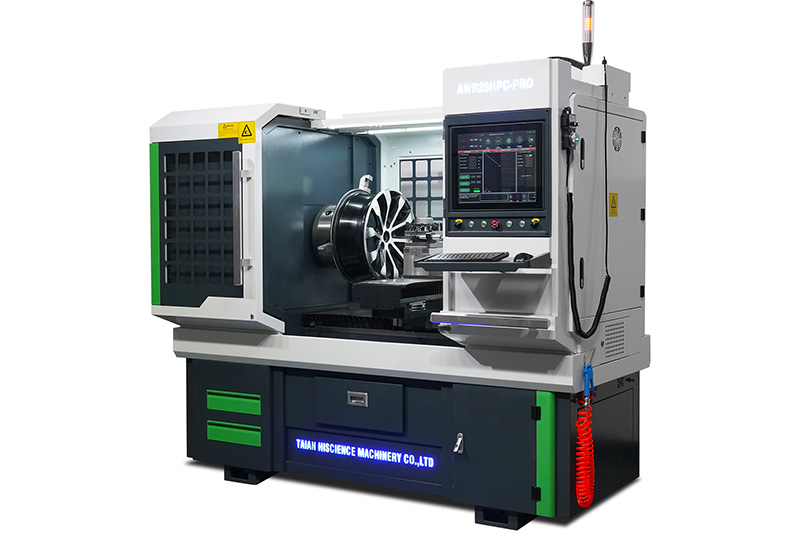

AWR28HPC-PRO alloy wheel repair machine is smart diamond cutting wheel repair lathe which uses integrative touch screen PC controller, automatic detection system, integrative optimization software. It can repair wheels up to 28inch. The entire operation process only requires four steps: wheel installation, wheel curve detection, curve optimization, and cutting to complete the repair. The machine operation is very simple, saving time and effort.
Specifications
◉Maximum wheel diameter: 720 mm
◉Maximum repairable wheel thickness: 570 mm
◉Total machine power: 9KW
◉Chuck Diameter/Number of Jaws: 320mm /3 jaws
◉Tool changer: 4 Station tool changer
◉Wheel detection method: Ruby probe detection system
◉Customization for different voltages: Support
◉Multi-languages: Support
◉Device Voltage/Frequency: 380V 3ph/ 50HZ
◉Weight: 1440KG
◉Machine size: 2120 x 1260 x 1950 mm
Features
◉Restores diamond cut alloy wheels ≤ 28inch
◉Integrative digital optimization software
◉17" Touch screen controller
◉Wheel profile storage - wheel library function
◉Automated self-plotting probe
◉Automatic electronic pump lubrication
◉X&Z axis servo motors - controlled cut
Certificate
CE
CE
