Introduction

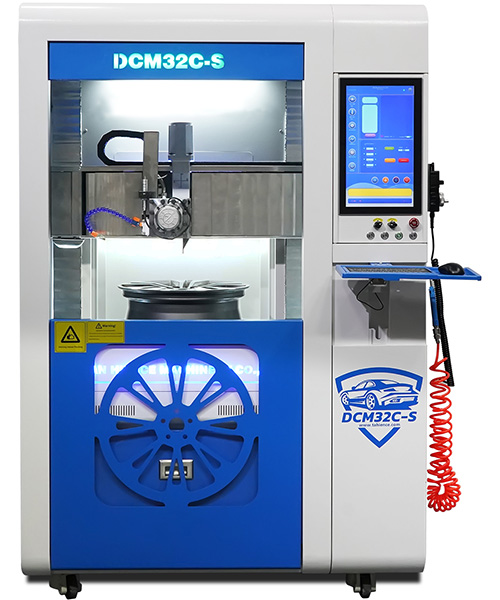

The DCM32C-S is a new-generation alloy wheel repair machine independently developed by our company, incorporating mature product expertise alongside insights gained from market research and user feedback on the DCM series. The machine features comprehensive design upgrades, including improvements to the cast-iron bed structure and the X/Z-axis configuration. Additionally, the electrical cabinet has been positioned on the right side of the machine to facilitate easier maintenance. From product design and manufacturing processes to the selection of key components, the DCM32C-S exemplifies professional quality and exquisite craftsmanship.
Specifications
◉Maximum clamping wheel size: 30 inch
◉Maximum diameter with tire on: 800mm
◉Maximum repairable wheel thickness: 480mm
◉Total machine power: 7KW
◉Chuck Diameter/Number of Jaws: 320mm / 3jaws
◉Tool changer: 4 Station automatic tool changer
◉Positioning Accuracy: ±0.02 mm
◉Wheel detection method: Ruby probe detection system
◉Customization for different voltages: Support
◉Multi-languages: Support
◉Net Weight: 850KG
◉Machine size: 1400×920×1930mm
◉Device Voltage/Frequency: 380V 3ph 50Hz/60Hz
Features
◉Intelligent control, easy operation
◉High-precision 4-station automatic tool changer
◉The double-column gantry structure and crossbeam design achieve excellent stability.
◉High-precision linear guide rails with high speed and low noise.
◉The distribution room is on the right, making maintenance more convenient.
◉The vertical design simplifies wheel repair operations.
◉Speed adjustment via a speed control switch during detection and cutting.
◉Automatic multiple-cutting cycles can be set.
Certificate
CE
CE
