Introduction

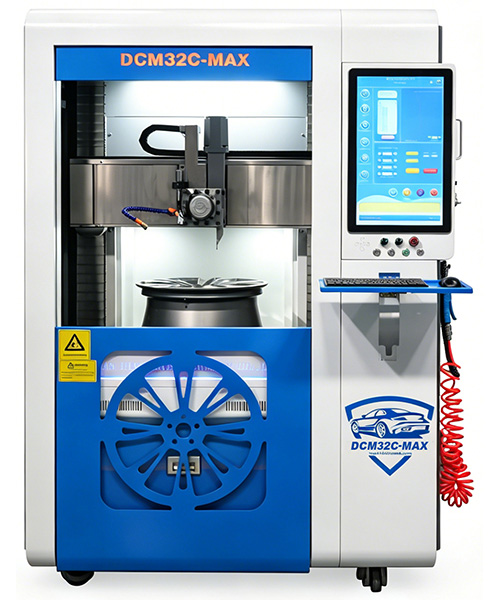

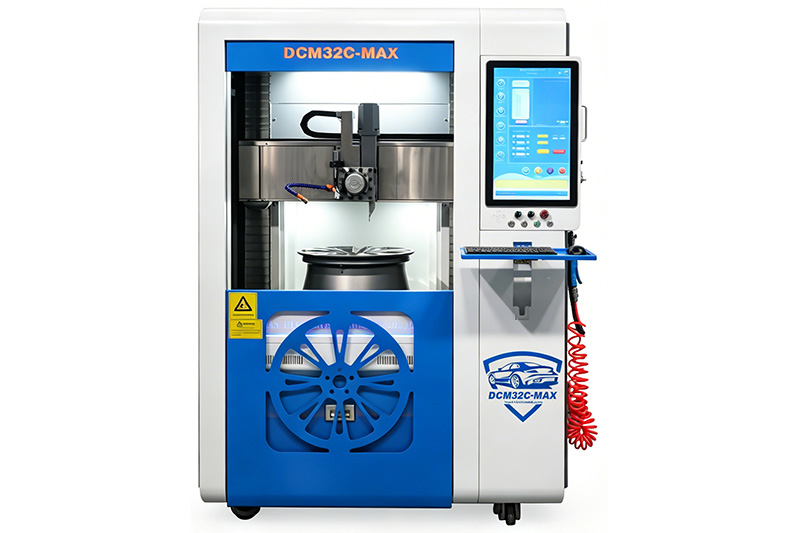

The DCM32C-MAX is an upgraded version of our company's DCM series wheel repair machine. It incorporates extensive product expertise and features comprehensive design enhancements, including improvements to the cast-iron bed structure and the X/Z-axis configuration. Additionally, to facilitate easier maintenance, the electrical cabinet has been positioned on the right side of the machine, and a dual Z-axis motor setup has been adopted to ensure greater stability during the wheel repair process.
Specifications
◉Maximum clamping wheel size: 30 inch
◉Maximum diameter with tire on: 800mm
◉Maximum repairable wheel thickness: 480mm
◉Total machine power: 9KW
◉Chuck Diameter/Number of Jaws: 320mm / 3jaws
◉Tool changer: 4 Station automatic tool changer
◉Positioning Accuracy: ±0.02 mm
◉Wheel detection method: Ruby probe detection system
◉Customization for different voltages: Support
◉Multi-languages: Support
◉Net Weight: 870KG
◉Machine size: 1400×920×1930mm
◉Device Voltage/Frequency: 380V 3ph 50Hz/60Hz
Features
◉22-inch large screen + intelligent control system.
◉Cast iron bed + gantry structure + dual Z-axis motors provide triple protection for stable machine operation.
◉The power distribution room is located on the right side of the machine for easier use and maintenance.
◉The vertical design simplifies wheel hub repair operations.
◉Automatic tool changer for high precision.
◉Select start and finish points for one-button automatic detection.
◉Speed adjustment via a speed control switch during detection and cutting.
◉Automatic multiple-cutting cycles can be set.
◉Added air blowing function to remove aluminum chips during cutting.
Certificate
CE
CE
