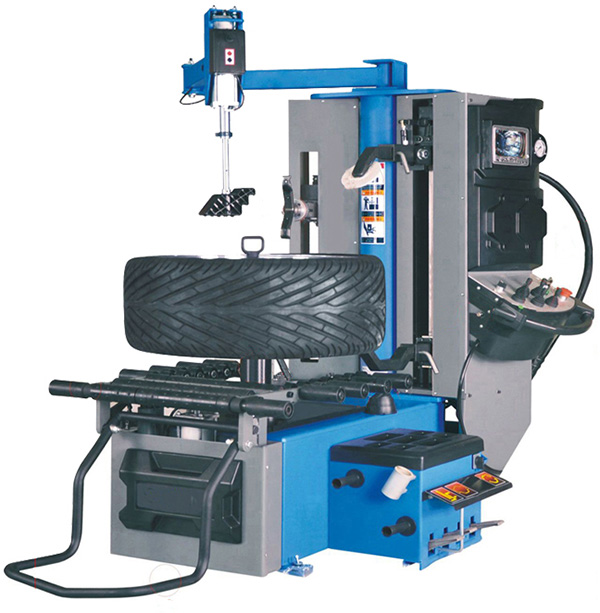

Full Automatic Tire Changer TC30L

Full Automatic Tire Changer TC30L

Specifications

◉Rim clamping size: 14" to 30"

◉Max.wheel diameter: 1300mm

◉Wheel width: 3"-13"

◉Operating pressure: 8-10bar

◉Motor power: 0.85/1.1kw

◉Noise Level: <75dB

◉Bead breaker power: 1400KG

◉Volume: 3.9m³

◉Weight: 692KGS

◉Packing size: 1680 x 1150 x 2000 mm

Features

◉The main shaft can move longitude with double speed, easy to operate and assure to meet the minimum size 14", maximum size 30" by slight adjustment

◉The demount head can be automatic

◉The bead breaker dick is centering with the center of the main shaft. The position of two points can be adjustable

◉The main shaft slide scale indicates the size of the rim

◉The tire lifter can automatically rotate the tire

◉The high strength design of the upper of the gearbox can secure the machine to demount stiff tire

◉Monitor system is convenient to see the process of demounting tire

◉Blast inflation can only be acted by two hands making the operation safer

◉Automatically stop on the condition of non-operation, saving electric power

◉The console is comfortable to control the machine

◉The pump station is imported

Certificate

CE

CE

CE

CE
