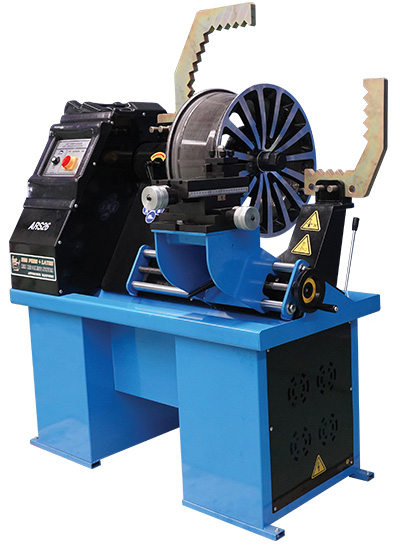

Rim Straightening Machine ARS26

Rim Straightening Machine ARS26


Rim straightening machine ARS26 is specially used to repair deformation, distortion, out-of-roundness, dents, etc. inside and outside the rim. The equipment is controlled by a hydraulic unit. Without damaging the molecular structure and mechanical properties of the aluminum alloy, positioning the damaged wheel with heat treatment and artificial aging can quickly restore it to its original shape. At the same time, ARS26 is equipped with a step less speed change function, which makes the deviation inspection, positioning mark, plastic repair, lathe turning of the wheel easier and more efficient.

Product Video


Wheel repair range: 10-26inch

Tool post: 2 position

Speed range of spindle: 0-500r/min

Working pressure: 15 Mpa

Hydraulic motor power: 1.5kw

Spindle motor power: 750W

Dimension: L1310 x W870 x H1400 mm

Gross Weight: 400kgs

Voltage: Single Phase 220V or 3 Phase 380V


Double rim repair support ensures complete repair angle

Automatic hydraulic jack

Turning lathe function

Complete set of repair tools
