Introduction

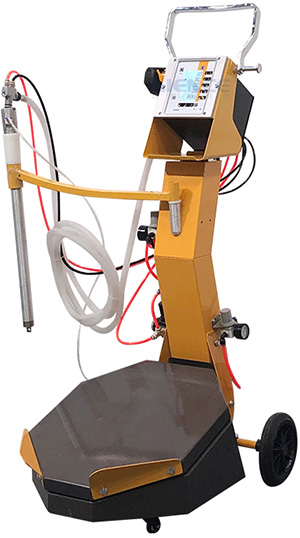

Precision control of current and voltage ensuring maximum efficiency and uniformity of coating The DVC (Digital Valve Control) of the control unit ensures accurate and repeatable settings of the powder output. The clear display makes it easy to find the optimal settings in every condition. The result perfect coating quality, reproducible time after time including the unit, the spray gun, the trolley, injector, the powder tube and air hose.
Specifications
◉Power range: 220V / 110V
◉Frequency: 50HZ / 60HZ
◉Temperature range in use: -10℃+50℃
Powder Gun
◉Gun weight: 500g
◉Rated output voltage: 24VDC
◉Maximum output current: 180Ua (max)
◉Maximum output voltage: 0-100KV (adjustable)
◉Maximum powder injection: 600g/min
◉Polarity: negative (-)
Pneumatic Data
◉Maximum input-air pressure: 10kg/cm
◉Optimum input-air pressure: 6kg/cm
◉Minimum input-air pressure: 4kg/cm
◉Maximum water vapor content or compressed air: 1.4g/N m³
◉Maximum oil vapor content of compressed air: 0.1ppm
◉Maximum compressed-air consumption: 13.2 m³/h
Certificate
CE
CE
